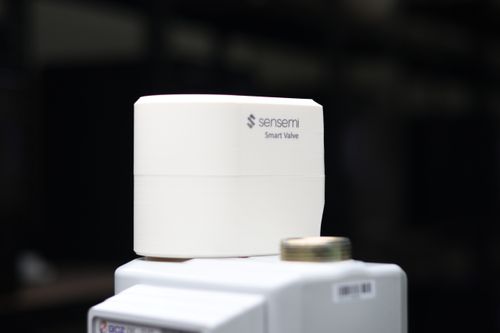

The SenseMi Smart Motorized Ball Valve offers secure, remote-controlled operation with tamper-resistant design, providing a smart, reliable upgrade for utility metering systems.
The 3/4-inch motorized ball valve, constructed from durable brass and featuring a 2-wire auto-return function, is designed for diverse piping applications. It operates on an alternating voltage range of 85-265 V AC, with an opening time of 6 to 8 seconds. The built-in limit switches enable low energy consumption, and the valve automatically closes in case of a power outage. A manual override function allows for easy operation during power failures, while a position indicator on the actuator provides clear status visibility.
• Flexible Control: The motorized ball valve offers both manual and wired control for independent operation, ensuring versatile system integration.
• Status Visibility: A position indicator provides immediate visual feedback on the valve's status, clearly showing whether it is open or closed.
• Wide Voltage Compatibility: Operating within a broad voltage range of 85-265V AC/DC, the valve opens or closes efficiently in 6-8 seconds, consuming no power after movement is complete.
• Automatic Return: The 2-wire auto-return system automatically closes the valve when power is disconnected, ensuring reliable and hassle-free operation.
• Durable Performance: Designed for longevity, the valve supports 80,000 to 100,000 cycles, making it a reliable and energy-efficient alternative to solenoid valves, reducing the risk of overheating and ensuring consistent performance over time.
• Size: 3/4"
• Material: Stainless Steel
• Ball Seat: PTFE
• Seal: Silicone Rubber
• Close/Open Time: 6-8 seconds
• Voltage: 85-265V AC/DC
• Maximum Power: 5W
• Maximum Torque: 2.5 Nm
• Maximum Pressure: 1.0 MPa
• Flow Medium Temperature Range: 0°C to 100°C
• Ambient Temperature Range: -5°C to 40°C
• Housing Rating: IP65
• Life Expectancy: 80,000 - 100,000 cycles
• Thread Type: NPT
• Bore Type: Full
Usage Restrictions: Not suitable for use with strong acids, strong bases, sewage, industrial gases, or media containing significant impurities.
Warning: Contains lead (~3.05%). Not suitable for potable water applications.
Auto-Return Functionality: To ensure the automatic reset feature works properly after power is disconnected, the device must be powered for approximately one minute to fully charge the capacitor in 2-wire auto-return motorized ball valves.
